Wi-Fi 7

Today I am going to discuss about Wi-Fi 7 in this thread. I will highlight the new features of Wi-Fi 7 and compare it with previous generations.

Figure 1, view larger image

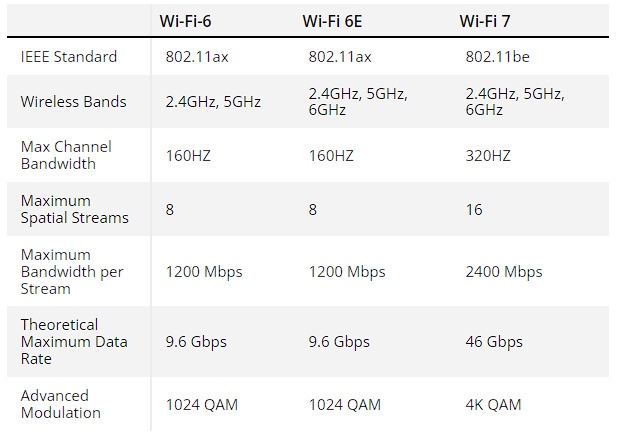

More than 9 billion Wi-Fi devices are in use worldwide and demands on Wi-Fi networks will keep increasing. With new ultrahigh throughput and low latency applications proliferating by the day, this is where Wi-Fi 7 comes in. The seventh generation of Wi-Fi technology Wi-Fi 7 also known as 802.11be works on all three frequency bands (2.4GHz, 5GHz & 6GHz). These new standard features Extremely High Throughput up to 46 Gbps per second which is 4.8 times faster than Wi-Fi 6 and 13 times faster than Wi-Fi 5.

Figure 2, view larger image

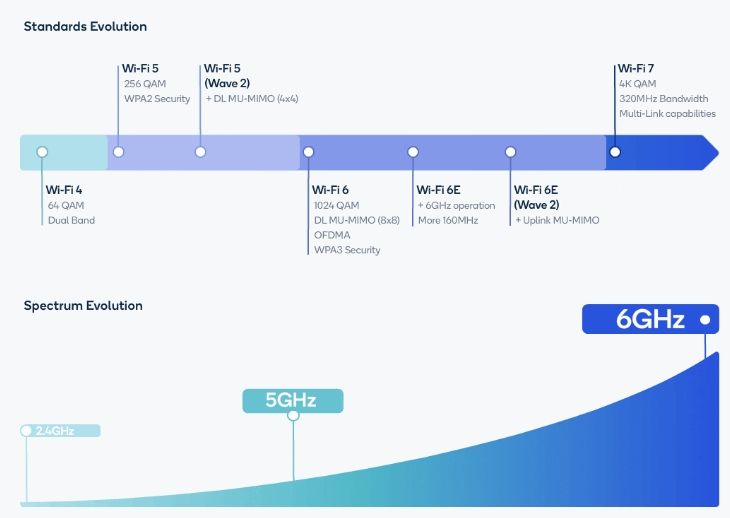

It also includes advances that reduce latency, increase capacity and boost stability and efficiency. If you're struggling with buffering lag or congestion, Wi-Fi 7 will be your solution. Whether you're a smart home enthusiast, a gamer, or a professional you too can experience the most cutting-edge Wireless technology. Building off previous Wi-Fi standards, Wi-Fi 7 introduces 320 MHz ultrawide bandwidth, 4096 QAM Multi-Link, Operation Multi-RU, Preamble Puncturing and 16 x 16 MU-MIMO to provide massive improvements in speed. Throughput has been doubled with the maximum bandwidth increased from 160 MHz to 320 MHz.

Figure 3, view larger image

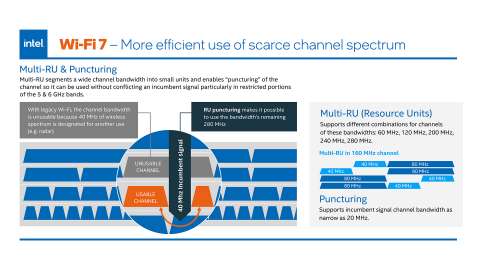

To further enhance Peak rates Wi-Fi 7 adopts a higher order modulation scheme 4096 QAM. This packs 120 % more data for higher speed. The new multi-link operation mode allows aggregation of two or more channels from any available frequency band. This enables devices to simultaneously send and receive data across different frequency bands. In addition to further enhancing spectral efficiency, Wi-Fi 7 supports Multi-RU management allowing multiple resource units to be assigned to a single user.

Figure 4, view larger image

 Meanwhile, with Preamble Puncturing widen portions of bandwidth can be transmitted regardless of interference. Now, every available piece of the spectrum can be used raising overall Network efficiency. Finally, Wi-Fi 7 16 x 16 MU- MIMO technology supports 16 streams to transmit data volume to multiple clients at the same time. With all of these, Wi-Fi 7 will serve as the backbone for streaming voice conferencing, cloud gaming, smart homes, industrial Internet of things, the metaverse, telemedicine, and more. These exciting enhancements and major lifestyle changes are made possible by Wi-Fi 7's Innovative Technologies. More scenarios than you could ever imagine will be unlocked. All these breakthroughs will help the digital age to enjoy even more eye-opening experiences.

Figure 5, view larger image

Are you excited about Wi-FI 7?

Tell us your thoughts about this in the comments section.

Happy Questing.

( Source:- Internet)
