Hello friends,

Today in this thread i am discussing some details and specifications about one of the most Powerful Chipset ie, MTK 920, launched by Mediatek. So Let's start😊.

The MediaTek Dimensity 920 is designed to appeal to smartphone users who love their cameras, their big, bold, and fast displays, unstoppable connectivity, and endless battery life.

The Dimensity 900-series are one of the best chips in their class to offer flexible component use without requiring a platform redesign, removing design challenges, and expressing time to market.

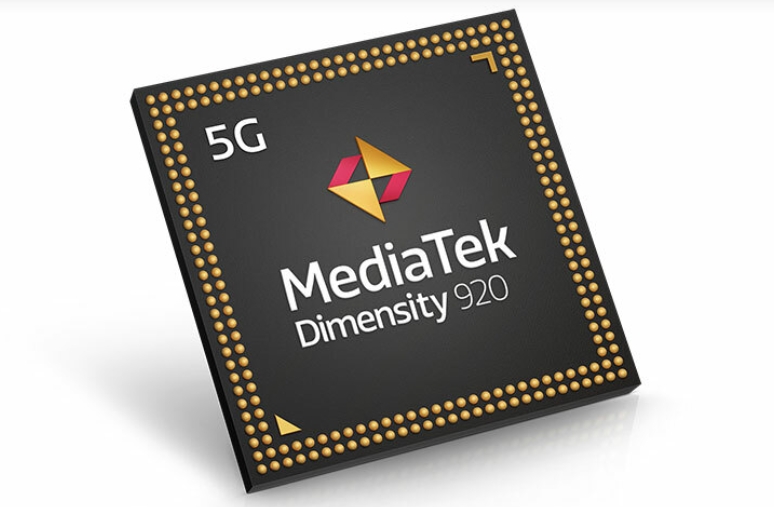

Th 6nm MediaTek Dimensity 920 SoC caters to the most powerful mid-range 5G smartphones with Intelligent Displays and incredible 4K HDR Video capture.

This Dimensity 920 provides dual 5G SIM to high-end 5G smartphone users. With 5G-SA (standalone) that’s always ready, users also have access to premium VoNR call services from both connections whenever they need it.

And With Faster Wi-Fi 6 2x2 MIMO gives users faster, more reliable internet connections.

This chipset boosted Gaming Performance very well.As The Dimensity 920 boosts its Arm Cortex-A78 CPU frequencies up to 2.5GHz, offering exceptional performance for snappier App response, faster FPS in games and better, connected experiences.

It also supports 5G HSR (“high speed rail”)

mode for gaming. As With HSR mode the smartphone will search and connect to the lowest latency available cell tower to minimize online ping. This is particularly advantageous when traveling fast, as the relative distance – and thus latency – to each tower changes rapidly.

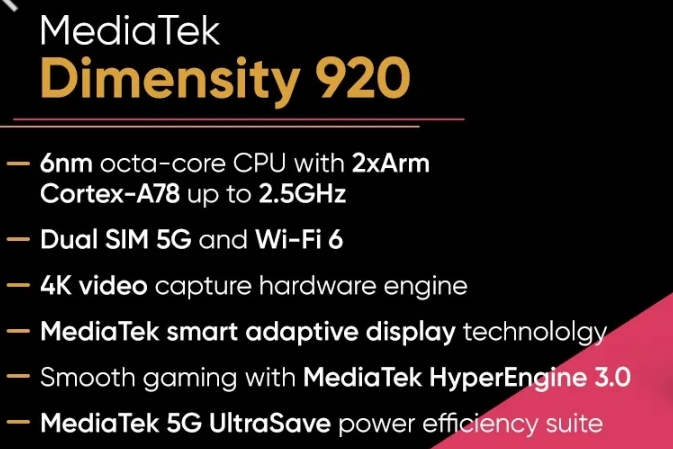

👉Here below are the Specifications of this POWERFUL chipset:

Specifications:

1)Processor

Arm Cortex-A78 @ 2.5GHz

Arm Cortex-A55 @ 2.0GHz

Cores

Octa (8)

CPU Bit

64-bit

Heterogeneous Multi-Processing

Yes

Display:

Max Display Resolution

2520 x 1080

Max Refresh Rate

120Hz

AI

AI Accelerator

Yes

Graphics:

GPU Type

Arm Mali-G68 MC4

Video Encoding

H.264, H.265 / HEVC

Video Encoding FPS

4K @ 30FPS

Video Playback

H.264, H.265 / HEVC, MPEG-1/2/4, VP-9

Video Playback FPS

4K @ 30FPS.

Camera:

Max Camera ISP

20MP + 20MP, 108MP

Max Video Capture Resolution

3840 x 2160

Camera Features:

Hardware video HDR, 3X HDR-ISP, MFNR, 3DNR, AINR, Hardware Depth Engine, Warping Engine.

Memory Type:

LPDDR4x, LPDDR5

Storage Type

UFS 2.1, UFS 3.1

Connectivity:

Cellular Technologies

2G / 3G / 4G / 5G Multi-Mode, 4G Carrier Aggregation (CA), 5G Carrier Aggregation (CA), EDGE, 4G FDD / TDD, 5G FDD / TDD, GSM, TD-SCDMA, WDCDMA

Specific Functions:

SA & NSA modes; SA Option2, NSA Option3 / 3a / 3x, NR TDD Band, NR FDD Band, DSS, NR DL 2CC, 120 MHz bandwidth, 256QAM NR UL 2CC, 256QAM VoNR / EPS fallback

GNSS

GPS L1CA+L5 / BeiDou B1I+ B2a / Glonass L1OF / Galileo E1 + E5a / QZSS L1CA+ L5 / NavIC

Wi-Fi Antenna:

2T2R

Wi-Fi:

Wi-Fi 6 (a/b/g/n/ac/ax)

Bluetooth Version

5.2

Data source: mediatek

That's all about this thread friends.Do Share your valuable feedback about this chipset in the comment section below.See you soon in my next thread.Till then #KEEP QUESTING..🤗

Signing Off

TechSAM009

Moderator@iQOO Connect

I QUEST ON AND ON..👍
