Introduction

Hey everyone ✨ In recent days , We have seen many devices launced with these processors and our iQOO Z9 also have Mediatek Dimensity 7200 processor ! So , it is exciting to know the difference between these two 7020 and 7200 ⚡ for a quick decision of your purchase as well .

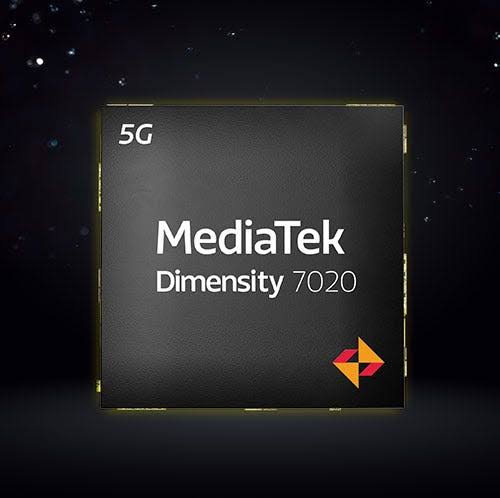

Mediatek Dimensity 7020

The MediaTek Dimensity 7020 empowers gaming smartphones with HyperEngine 5.0 lite. Designed to accelerate apps, snap moments clearly with its hardware-accelerated camera technologies, show off streaming videos in vivid HDR10+, and connect with global 5G that reaches further. All with exceptional power efficiency.

Specifications

| Processor

CPU : Arm Cortex-A78 @ Up to 2.2GHz ,

Arm Cortex-A55 @ Up to 2GHz

Cores - Octa (8)

CPU Bit - 64-bit

Heterogeneous Multi-Processing - Yes

| Memory and Storage

Memory Type -  LPDDR5 , LPDDR4X

Storage Type - UFS 3.1 2-lane

| Camera

Max Camera ISP - Up to 108MP

Camera Features -

Hardware MFNR,

3DNR,

PDAF,

plus DSDN 3.0,

AI-FD

| Display

Max Display Resolution - 2520 x 1080

Max Refresh Rate - 120Hz

| Graphics

GPU Type - IMG BXM-8-256

Video Encoding -

HEVC

H.264

Video Encoding FPS

2K @ 30FPS

Video Playback -

HEVC

H.264

MPEG-1/2/4

VP-9

Video Playback FPS -

2K @ 30FPS

| Connectivity

Cellular Technologies -

2G-5G Multi-Mode, 5G Carrier Aggregation (CA), 5G FDD / TDD, 4G Carrier Aggregation (CA), 4G FDD / TDD, TD-SCDMA, WDCDMA, EDGE, GSM

Specific Functions -

SA & NSA modes; SA Option2, NSA Option3 / 3a / 3x, NR TDD+FDD DSS, NR DL 2CC, 120 MHz bandwidth, 256QAM NR UL 2CC, 256QAM VoNR / EPS fallback

Peak Download Speed -  2.77Gbps

GNSS -

GPS L1CA+L5,

BeiDou B1I+ B2a

Glonass L1OF

Galileo E1 + E5a

QZSS L1CA+ L5

NavIC

Wi-Fi Antenna

1T1R

Wi-Fi - Wi-Fi 5 (a/b/g/n/ac)

Bluetooth Version - 5.2

Mediatek Dimensity 7200

Embracing flagship-class power efficiency of TSMC’s 2nd-Gen 4nm chip production process, the MediaTek Dimensity 7200 integrates high-end technologies, introducing 2nd generation Armv9 processors with a fast peak performance of up to 2.8GHz, ensuring effortless multitasking, great gaming performance, and a strong generational performance uplift, while also maximizing battery life.

Specifications

| Processor

CPU - 2x Arm Cortex-A715 up to 2.8GHz

6x Arm Cortex-A510

Cores - Octa (8)

| Memory and Storage

Memory Type - LPDDR4x , LPDDR5

Max Memory Frequency - Up to 6400Mbps

| Storage Type

UFS 3.1

| Connectivity

Cellular Technologies

2G-5G Multi-Mode, 5G/4G CA, 5G/4G FDD / TDD, CDMA2000 1x/EVDO Rev. A (SRLTE), EDGE, GSM, TD-SCDMA, WDCDMA

| Specific Functions

SA & NSA modes; SA Option2, NSA Option3 / 3a / 3x, NR TDD and FDD bands, DSS, NR DL 2CC 200MHz bandwidth, 4x4 MIMO, 256QAM NR UL 2CC, R16 UL Enhancement, 2x2 MIMO, 256QAM VoNR / EPS fallback

| Peak Downlink Speed - 4.7Gbps

GNSS

GPS

BeiDou

Glonass

Galileo

QZSS

NavIC

Wi-Fi

Wi-Fi 6E (a/b/g/n/ac/ax)

Wi-Fi Antenna - 2T2R

| Bluetooth

5.3

| Camera

Max Camera Sensor - 200MP

Max Video Capture Resolution - 4K30 (3840 x 2160)

| Camera Features

Video HDR

Video EIS

Dual simultaneous video capture

AI-2A (AI-AF, AI-AWB)

All-pixel AF

Graphics

GPU Type - Arm Mali-G610 MC4

Video Encoding - H.264 , HEVC

Video Playback - H.264 , HEVC , VP-9

| Display

Max Refresh Rate - Full HD+ @ 144Hz

| AI

MediaTek 5th generation APU : APU 650

Source : Mediatek Official Site //

And the decision is final on the basis of your needs // I would prefer Mediatek Dimensity 7200 for You all ❤️

I hope you find this thread Helpful ✨
